1BC11 Merge Belt Conveyor
| Conveying speed, m/min | 30 to 120 |
| Max load, kg/m | 50 |
| Inner width of the frame options, mm | 417 to 917 |
| Drive type | AC gear motor(without brake) |
| Belt | 2.4mm, PVC, matte black |

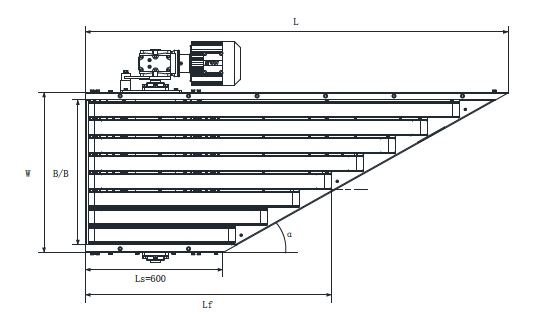

| Short side length, mm | 600 |
| Center length, mm | 1158.1, 1228.2, 1298.4, 1368.6, 1509, 1578.6 |
| Long side length, mm | 1716.1, 1856.5, 1996.9, 2137.3, 2418, 2558.2 |
| Installation height, mm | ≥350 |

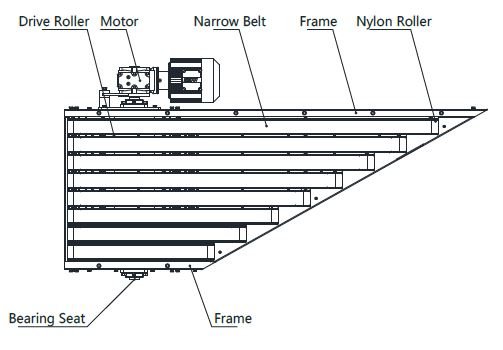

The Merge Belt Conveyor is comprised of multiple standard narrow belt modules secured in the conveyor frame. All narrow belts are driven by a single roller. The narrow belts transport product to the main conveying line.
It is capable of transporting product of different shapes and sizes such as cartons, boxes and parcels.
