1ST03 Swivel Wheel Sorter
| Conveying speed, m/min | 36 to 100 |
| Max. load, kg | 0.5 to 30 |
| Sorting efficiency, pcs/h | ≤5000 |
| Inner width of the frame options, mm | 517to 817 |
| Module length, mm | 500 660 720 |
| Sorting angle | 30°, 45° |
| Drive type | Gear motor |
| Installation height, mm | ≥500 |

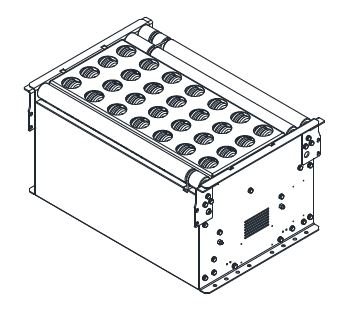

The Swivel Wheel Sorter is fitted with two motors. One motor is used to drive the rollers and rotate the swivel wheels. The second servo motor is used to drive the connecting rod to change the direction of the swivel wheel to sort items.

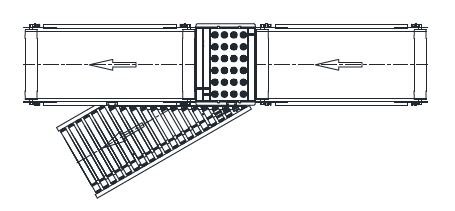

The Swivel Wheel Sorter operates as an independent module. The Swivel Wheel Sorter can be installed at any position in the belt or roller conveyor.
It is suitable for diverting and sorting cartons, totes and boxes.
